Wireless HDMI Extender 50M

Wireless HDMI Extender 50M

Rs.45,405.00 PKR
Rs.50,000.00 PKR Rs.45,405.00 PKR
Sale Sold out

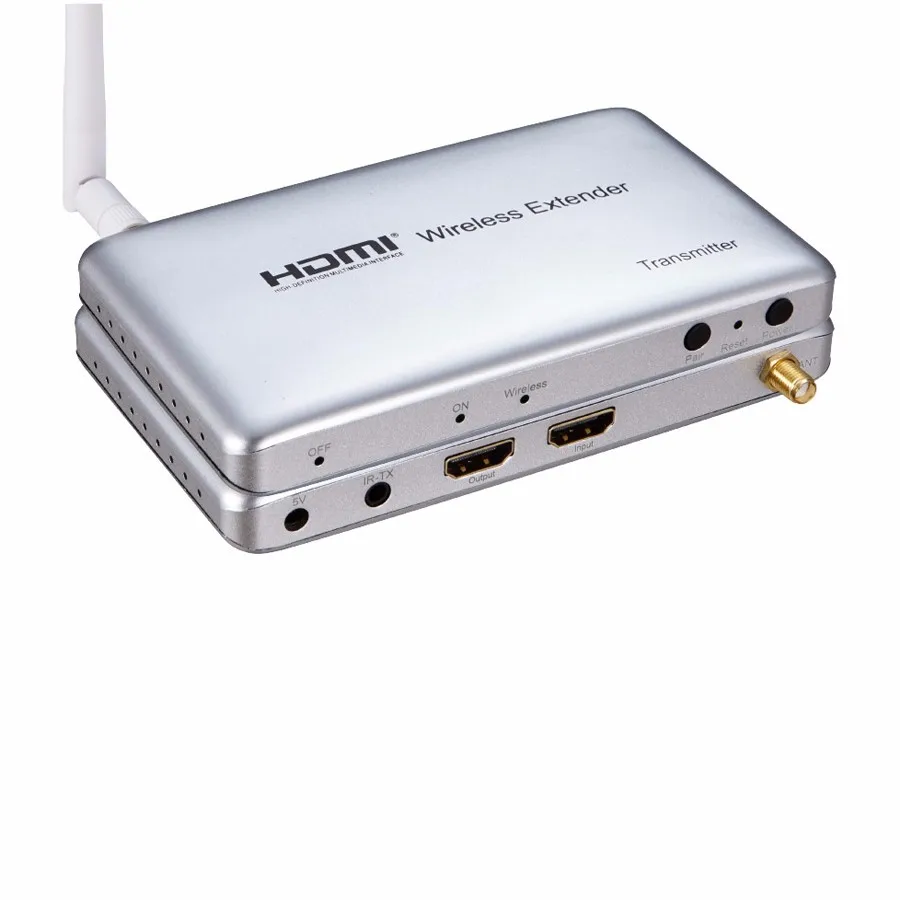

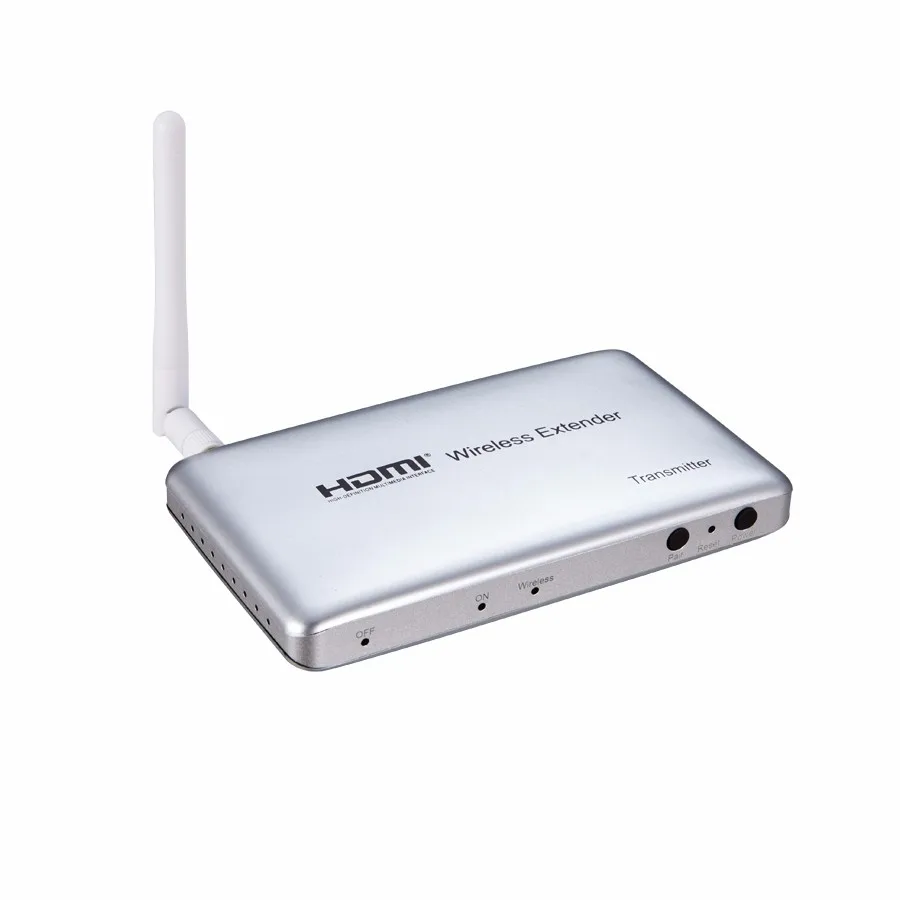

High Quality Wireless HDMI Extender 50M HD 1080P Video/Audio Signal Transmission System HDMI wireless Extender Transmitter and Receiver

Wireless HDMI Extender 50M

Introduction
This HDMI Wireless extender uses 5G technology which enables high-speed, high performance wireless communication among consumer electronics, computer and mobile devices.
It combines high bandwidth capacity to robust error-correction ,to deliver uncompressed HD video, multi-channel surround sound.
It can go through the wall, and the transmitting distance of wireless can be up to 50m in the open area.
153

Features
Support HDMI 1.4a version
Support HDCP1.3
Wireless conform to IEEE802.15.4 and IEEE802.11
Support input & output the highest resolution up to 1920x1080/60Hz
Support transmitter the highest resolution up to 720P/60Hz
Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
Working in 5G frequency band, it is not easy to be interfered by Wireless signals
The longest distance can be 50m (Under the condition of open area)
5V/1.5A power adaptor


Specifications:
HDMI version  ………………………………………………… HDMI 1.4a
HDMI resolution ………………………………up to 1920x1080/60Hz
Support audio format……..............DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth……………………………..………………………148.5MHz
Max baud rate……………….…….…….…..…………1.485Gbps
Input cable distance….…….….. (1080p resolution) ≤8m AWG26 HDMI standard cable
Output cable distance.……….…(1080p resolution) ≤8m AWG26 HDMI standard cable
Transmitter Max working current………………………………………...……….....850mA
Receiver Max working current………………………………...………………….....450mA
Power adapter format……..….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1.5A
Operating Temperature range………………………...……………………(-15to +55)
Dimension (L x W x H)………………..............…………………......…….136x78x23 (mm)
6

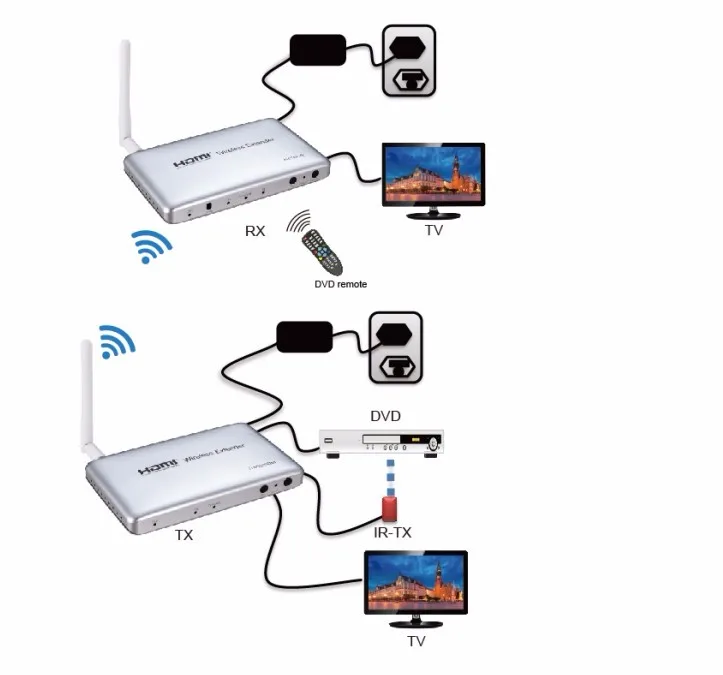

Connection and Operation:
1: Connect the HD source to the input of the wireless extender TX with 1 HDMI cable
2. Connect the output of the wireless extender TX to the source with 1 HDMI cable
3: Connect the output of the wireless extender RX to the display with 1 HDMI cable
4: Connect 5V/1.5A power adapter to the TX and RX.

The code:
The transmitter and the receiver extender have matched well in the factory, But if the user needs to match again (ex: the matched well transmitter or receiver needs to match other receiver or transmitter)
Please follow the steps:
1.TX: Connect the power supply in shutdown mode, hold down the code button and then press the power button again; OFF indicator light is off, ON indicator light is on.
2.RX: Connect the power supply in shutdown mode, hold down the code button and then press the power button again; OFF indicator light is off, ON indicator light is on.
3.When the “ON”light of TX and the RX and Wireless light are on, the code is successful;
   Firstly release the power button and then release the code button.
When the "OFF" is on，the whole process of code is over. After the reboot, it can be used.

Instruction:

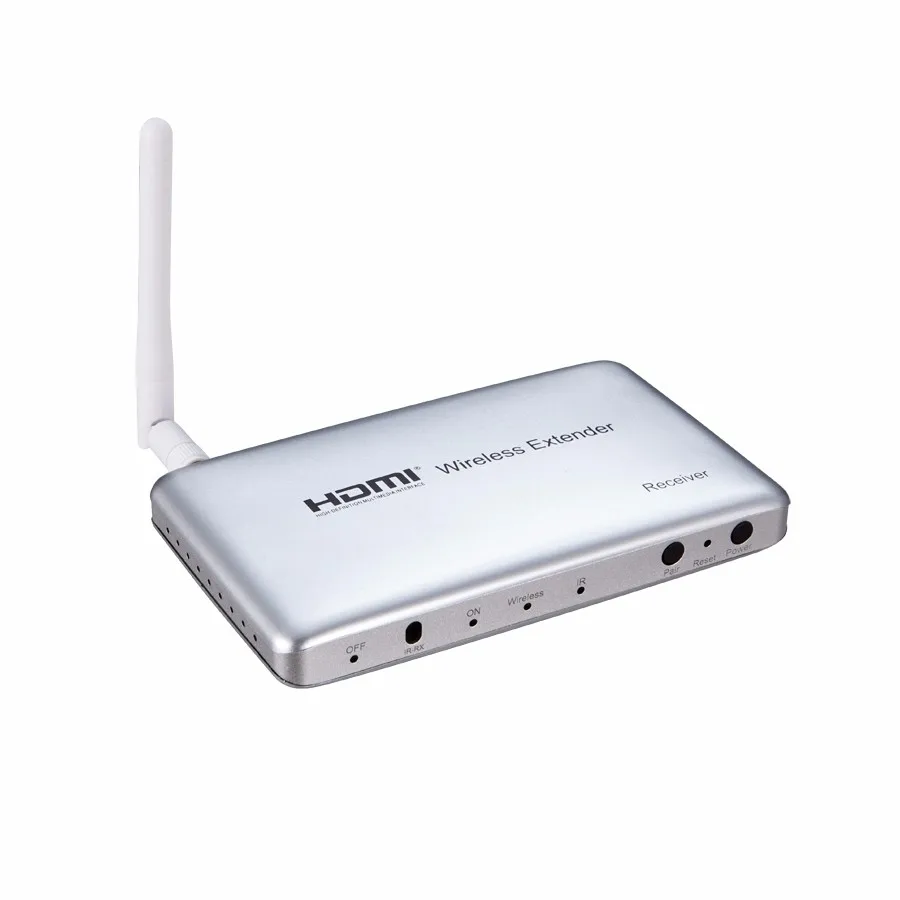

1.Bright “OFF” shows shutdown, and Bright “ON” shows working state.
2.When Wireless is flashing , it is transmitting or receiving HDMI Wireless signal; When the IR is flashing, it has received the infrared signal (the signal of remote control).
3.“Pair” is code button, “Reset” is Reset button ( Please use tiny hard objects to touch button, such as a toothpick) ,after the HDMI Extender is reset, "OFF" light is on .
4."Power" is switch button, when it works state ,press "Power ",after the "ON" indicator is bright, and the extender will work; When it is shutdown, press "Power " ( above 3S ),the "OFF" indicator is off, and the extender will be shutdown.


Package include
1.TX & RX
2.IR TX cable
3.Power adapter
4.User manual







  • Brand Name: HDCVT
  • Connector A: HDMI
  • Model Number: 50M
  • Type: Optical Fiber Cables
  • Connector B: HDMI
  • Gender: Female-Female
  • Bundle: Bundle 1
  • Packing: Carton Box
  • Shielding: Combination
  • Outer Diameter: No
  • Feature: HDMI1.4
  • Package: Yes
  • Application: Multimedia
  • Item Name: Wireless HDMI Extender 50M
  • Connector Color: Gold
  • Connector Type: HDMI
  • Gender: Female-Female
  • HDMI Vertiong: 1.4
  • Type: Wireless HDMI Extender 50M
