SENNHEISER
sennheiser evolutionwireless 112 G3
sennheiser evolutionwireless 112 G3
Couldn't load pickup availability
ew 112 G3
Make your presentations come to life. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation - not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.
Sennheiser EW 112 Wireless Presentation Set
Make your presentations come to life. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small.
The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation - not on purchasing batteries.
Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.
Product Code: SSE-SEN-EW112
Features
- Sturdy metal housing (transmitter and receiver
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Programmable Mute function
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Sennheiser Evolution Wireless G3 100 Brochure.pdfew 112 G3
Outstanding speech intelligibility, highest reception quality thanks to true diversity technology and a user-friendly menu operation.

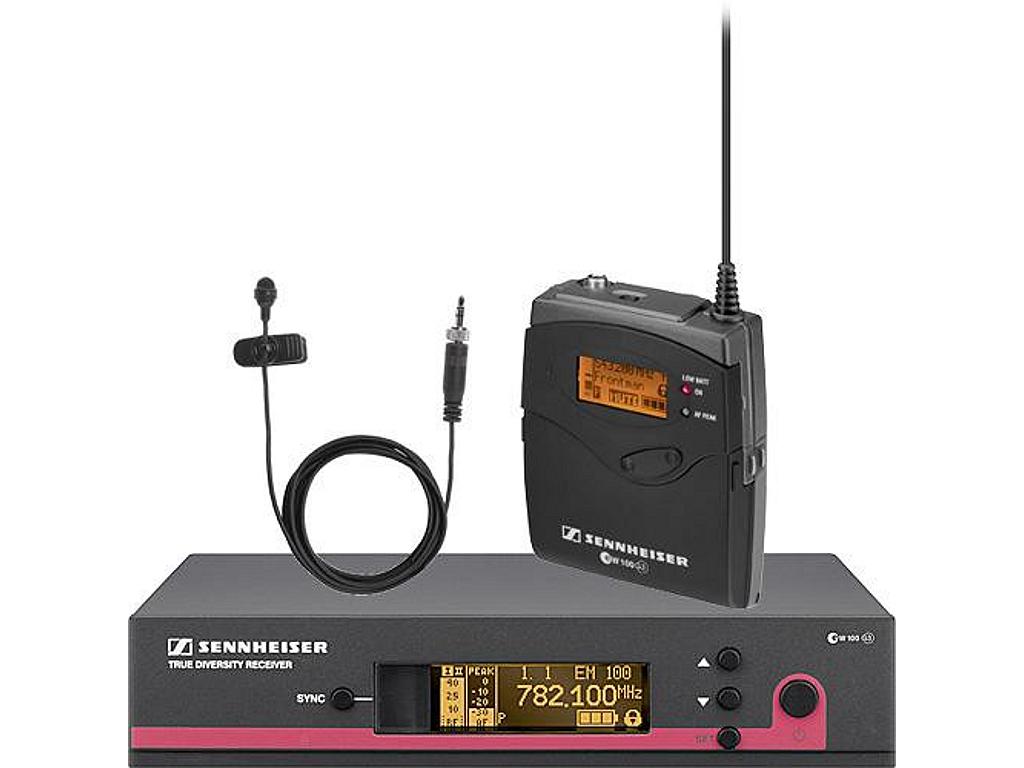

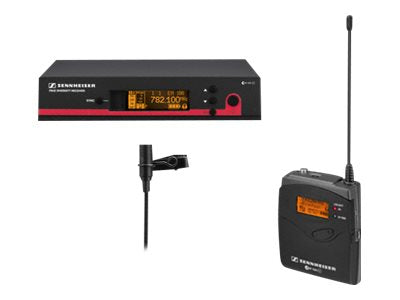

What's in the box?

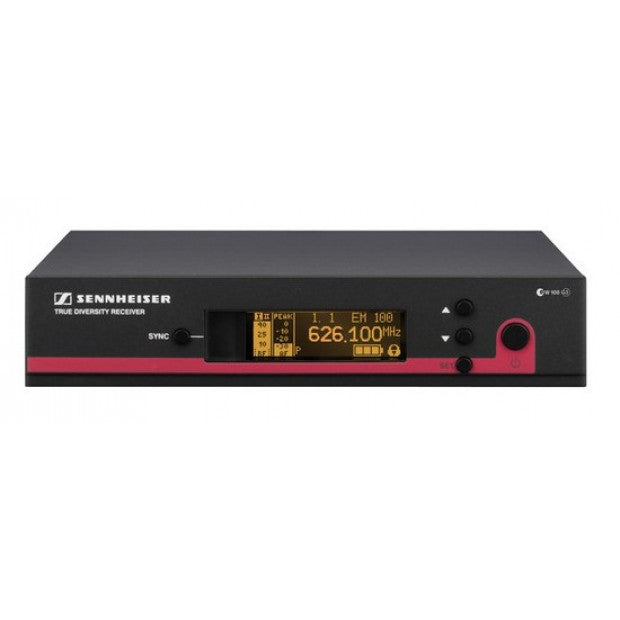

1 EM 100 G3 rack-mount receiver
1 SK 100 G3 bodypack transmitter
1 ME 2 clip-on microphone (omnidirectional pick-up pattern)
1 NT 2 power supply unit
2 antennas
2 stacking elements
2 AA batteries
Operating instructions
Which frequency?
Sennheiser radio systems come in a variety of radio frequency options, only some of which are suitable for UK operation. SSE's sales team are experts in what has become something of a minefield for the end user. Please contact us and we will be able to advise you on the best solution for your needs.
Technical Data
|
Compander |
HDX |
|
Presets |
12 |
|
Frequency response |
25.....18.000 Hz |
|
THD, total harmonic distortion |
< 0,9 % |
|
Signal-to-noise ratio |
> 110 dB(A) |
|
RF frequency range |
516..... 865 MHz |
|
Transmission/receiving frequencies |
1680 |
|
Switching bandwidth |
42 MHz |
Receivers True Diversity
|
Dimensions |
202x212x43mm |
|
Weight |
~ 900g |
|
Antenna connector |
2x BNC, 50 Ohm |
|
Audio output level |
unbalanced: Jack: +12dBu max 12 V DC |
|
balanced: XLR: +18 dBu max Jack: +12 dBu max |
Transmitter
|
Dimensions |
82x64x24mm |
|
Weight |
~ 160g |
|
RF output power |
typ. 30 mW battery AA (Mignon) |
|
Operating time |
8 h |
|
Power supply |
2x AA batteries |
|
Input voltage range |
1,8 V line |
|
3 V eff. line |
Clip-on microphone
|
Microphone |
permanent polarized 130 dB(SPL) max. |
|
Sound pressure level (SPL) |
130 dB(SPL) max. |
|
Pick-up pattern |
omni-directional omni- directional |
|
AF sensitivity |
20 mV/Pa omni- directional |
