About the PSB Imagine X1T
High-performance sound from a slim floor-standing speaker
PSB's Imagine X1T tower delivers refined sound with the kind of spatial and dynamic accuracy that will make it a hit in any home theater or stereo music system. The Imagine X line borrows from driver technologies developed for PSB's top-tier Synchrony speakers, giving you high-end sound at a budget-friendly price. The Imagine X1T also features clean lines and a slim cabinet design that won't clutter up your listening room.
High-tech drivers produce clean, well-balanced sound
The Imagine X1T's 1" titanium dome tweeter effortlessly dishes out smooth, uncolored highs. The speaker's dual 5-1/4" woofers use an advanced clay/ceramic-filled polypropylene cone design. This stiff, lightweight material helps them deliver midrange that's clean and balanced, with surprisingly deep bass. It all adds up to realistic, detailed sound with a wide, deep soundstage that'll really draw you in.
- frequency response: 35-23,000 Hz (±3dB)
- sensitivity: 90 dB
- impedance: 8 ohms
- recommended power: 20-200 watts
- 1" titanium dome tweeter with neodymium magnets
- dual 5-1/4" clay ceramic-filled polypropylene woofers
- bass reflex (ported) design
- two sets of gold-plated five way binding posts — can be bi-wired or bi-amped
- black ash vinyl finish
- weight: 38 lbs.
- 8-1/4"W x 34-1/2"H x 14-7/8"D
- MFR # Imagine X1T
What's in the box:
- Floor-standing speaker
- 4 Rubber feet
- 4 Spiked Feet
- Quick Start Guide
Features & specs
|Tweeter Size (inches)||1|
|Midrange Size (inches)||N/A|
|Woofer Size (inches)||5.25|
|Built-in Powered Sub||No|
|Dolby Atmos Drivers||No|
|Connector Type||5-way post|
|Frequency Response||35-23k Hz|
|Subwoofer Amp Power||---|
2.5-Way Speaker Design: The PSB Imagine X1T floor-standing speaker employs a two-and-a-half speaker design with a single 1" tweeter and two 5.25" woofers. This dual-woofer transitional two-and-a-half way design features identical 5.25" woofers that work in tandem at the lowest frequencies but crossover at different frequencies to integrate better with room acoustics and give the optimum dispersion and power response. Like all Imagine woofers, the cone materials have been carefully engineered for optimal control, allowing for a simpler, more cost effective crossover design. With the Imagine 1" pure titanium dome tweeter, the Imagine X1T delivers refined sound with tonal, spatial and dynamic accuracy
- 1" Tweeter: The PSB Imagine X1T features a 1" titanium dome tweeter with ferrofluid and a neodymium magnet structure for extended high frequency response that remains distortion free even at extreme volume levels.
- 5.25" Woofers: The PSB Imagine X1T houses two 5.25" proprietary injection-molded clay/ceramic reinforced polypropylene cones with rubber surrounds that have been refined to improve stiffness, internal damping, and low mass. By optimizing the control and performance, the PSB engineering team was able to reduce the complexity of the crossover design.
Bass Reflex Cabinet: The Imagine X1T floor-standing speaker utilizes a bass reflex enclosure with a front-firing port for greater efficiency and bigger bass response. The cabinet's front baffle is made from 1-1/4" thick MDF and is extremely rigid to prevent unwanted distortion and vibration. A black ash wood-grain finish complements the crisp, clean lines, and slim cabinet to integrate seamlessly with almost any decor.

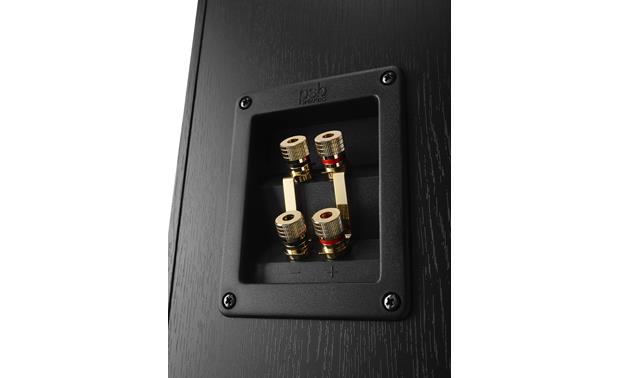

Dual Binding Posts: The Imagine X1T floor-standing speaker features dual 5-way, gold-plated binding posts that can accept bare wire (up to 8AWG), spade-lugs, pin-connectors, and banana plugs (single or dual). The two sets of binding posts are shorted together by a gold-plated jumper. With the jumper removed the Imagine X1T can be bi-wired or bi-amplified.NRC (Nation Research Council): Through many years of research at the National Research Council (NRC) in Canada, home to one of the world's most advanced acoustical laboratories, PSB's design team has learned not only what people love to hear, but also how they hear it in a room. Critical to the Imagine X series design is this research into human perception of sound using double-blind listening tests. Double-blind testing removes any listener bias to give us the most accurate test result. It allows PSB to understand what is most important to listeners and allows us to create the ideal blend of performance and price for every application. In 1974, PSB was the first company to use the NRC for loudspeaker development and remains the most active user of the facility today. PSB's experience with the NRC, how they interpret the data and implement it into the design of the Imagine X series speakers, gives PSB a real advantage in speaker design.
Rubber & Spiked Feet: The PSB Imagine X1T floor-standing speaker comes with four rubber feet and four spiked feet. The rubber feet should be used on hardwood and tiles floors, while the spikes should be used on carpeted flooring. The feet thread into the bottom of the speaker and are adjustable to level the speaker up with your floors. The rubber feet add approximately 0.375" to the height of the speaker, while the spiked feet add approximately 1.0" to the height of the speaker.
Applications: All PSB's Imagine X series speakers are carefully matched in timbre, giving you flexibility to combine any of the models to work together in many different rooms and system setups; from a simple stereo application to a complex home theater system.
