PSB Synchrony Two C

PSB Synchrony Two C owner's manual

• Center channel speaker
• Grille (installed)
• Rubber foot
• 2 Felt discs
• 2 Strips of 2-Sided adhesive
• Grille removal tool
• Input terminal jumper (installed)
• Owner's manual (English/ French/ Spanish)
• psb website information

Features & specs

Driver Technology

Cone Design: The two woofer cones are a laminated sandwich design; each has a fine weave fiberglass layer along with a compressed, felted natural fiber laminate. The result is a rigid cone with added damping properties. The central dustcap offers a second connection to the voice coil to improve bass and midrange control. The inherent distortion resulting from the magnetic field generated by the input signal reacting with the field in the magnetic structure's air gap and the self-induction and impedance that varies with cone movement are addressed using an aluminum shorting ring within the magnet structure, an aluminum phase plug on the pole piece, and a shorted copper turn on top of the pole piece. The aluminum phase plug also mechanically smoothes the response and acts as a heat sink for the voice coil, reducing power compression. The drivers use cast aluminum baskets and rubber surrounds.

Tweeter: The 1" titanium, Ferrofluid cooled dome tweeter has a neodymium motor structure and an aluminum heat sink. The mass (low) and stiffness (high) are optimized for the required wide frequency response.

Crossover Network: The crossover is a 2-way acoustical fourth order Linkwitz-Riley type with a 24 dB/octave slope. Tight tolerances were used when choosing the crossover components; heavy multi-laminated iron cores are used for large value inductors, high gauge wire air core inductors are used for medium and small values, all the capacitors are low loss and film capacitors are used for the midrange and treble frequencies.

Enclosure Design

Cabinet: The cabinet is an integral part of speaker design and has a dramatic effect on the overall sound of a speaker. PSB uses a combination of aluminum and wood in the Synchrony Two C's construction. The front baffle and rear panel are made of double wall aluminum extrusions. The aluminum panels are very rigid and precisely machined with contours to preserve the sonic characteristics of the drivers. The top and bottom panels are seven layers of 3mm MDF, curved for added stiffness, with a wood veneer exterior. While rigid, MDF also has inherent damping properties to absorb energy that might otherwise color the music.

Connections

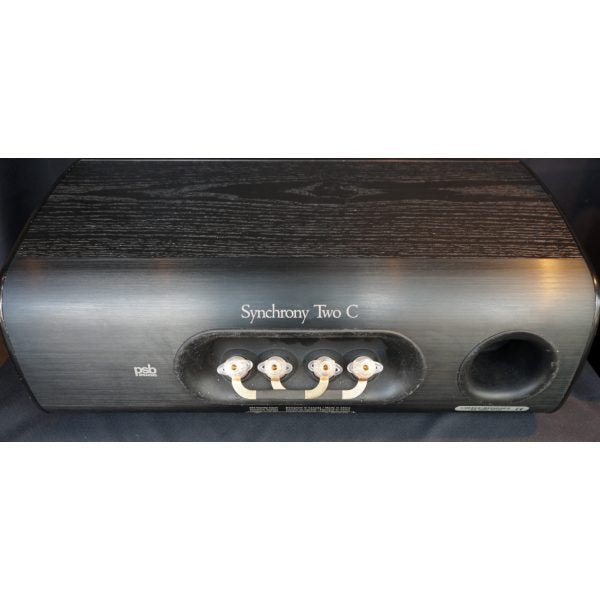

Dual Binding Posts: The dual binding post input terminals are located on the back of the speaker cabinet. The two sets of binding posts are shorted together by a gold-plated jumper. With the jumper removed the Synchrony Two C can be bi-wired or bi-amplified. The binding posts will accept spade connectors, single banana plugs, pin connectors, and bare wire up to 8 gauge.

Specifications

Frequency Response:

• On Axis @ 0°: 55-23,000 Hz (+/-3 dB)
• On Axis @ 0°: 55-20,000 Hz (+/-1.5 dB)
• Off Axis @ 30°: 55-10,000 Hz (+/-1.5 dB)
• Low Frequency Cutoff -10 dB: 49 Hz

Sensitivity:

• Anechoic Chamber: 87 dB
• Typical Listening Room: 89 dB
