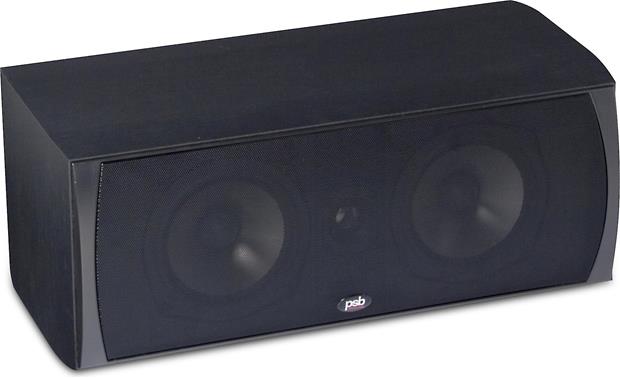

About the PSB Alpha C1
Thrilling home theater on a budget
Anchor the center of your home theater with the Alpha C1 center channel and reap the sonic rewards. Its excellent midrange and low frequency response allows it to easily handle the complex on-screen action and dialogue in all your movies, TV shows, and video games. You'll be amazed that a speaker of this size — and price point — can deliver such a wide soundstage filled with crisp, accurate detail. So sit back, relax, and let PSB show you what a home theater on a budget can really do.
Excellence by design
PSB's engineers began by designing each Alpha speaker from scratch to ensure that they'll deliver the same level of performance typically found on speakers twice their price. The Alpha C1 uses a 3/4" aluminum dome tweeter to deliver crisp, sparkling highs. The dual 5-1/4" woofers are made of metalized polypropylene, making them strong but lightweight. It means you'll hear excellent midrange detail and distinct bass without a trace of the listening fatigue that can happen with lesser speakers. The two woofers flank the tweeter in an array that increases the C1's on- and off-axis response, so everyone on your couch can enjoy the same, great PSB sound.

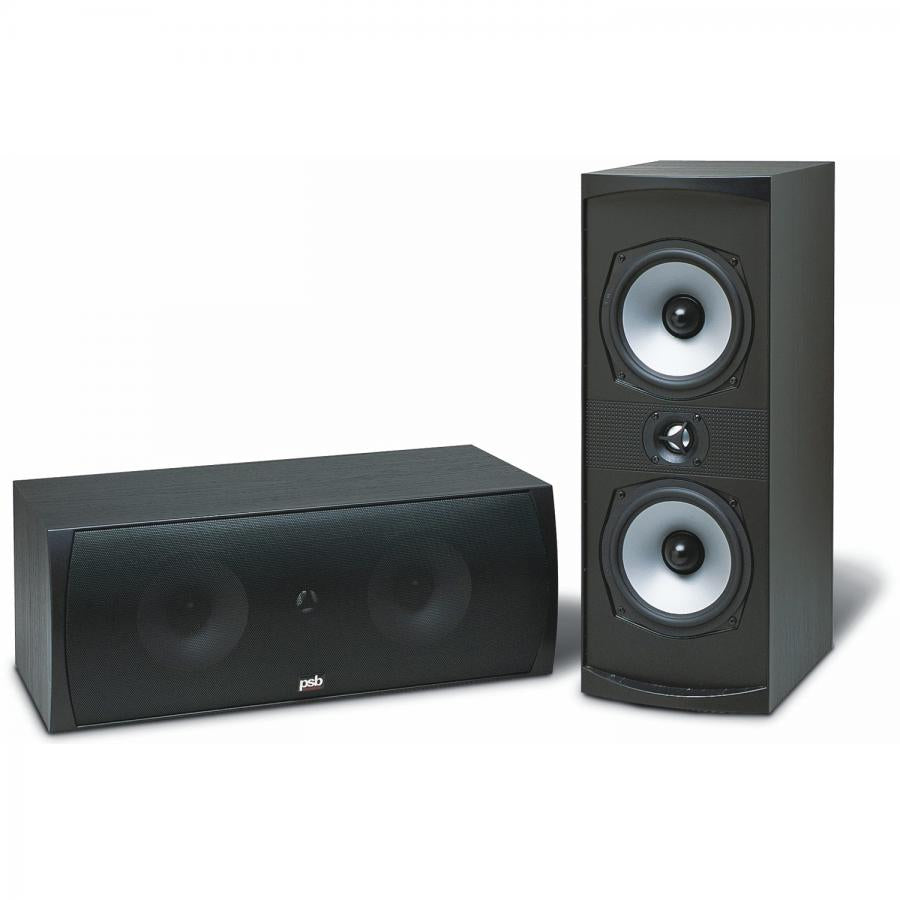

Build a complete Alpha system
Create a complete, budget-friendly Alpha home theater system using the C1 center channel and a combination of Alpha T1s floor-standing speakers in the front of your room and either the B1 bookshelf speakers or LR1 satellite speakers in the back of your room. And don't forget to add a PSB powered subwoofer (or two) for room-thumping bass.
- frequency response: 62-21,000 Hz (±3dB)
- sensitivity: 92 dB
- impedance: 8 ohms
- recommended power: 10-120 watts
- 3/4" aluminum dome tweeter
- dual 5-1/4" clay metalized polypropylene woofers
- bass reflex (ported) design
- gold-plated five-way binding posts
- keyhole slots and threaded inserts for optional wall mounting
- black ash vinyl finish
- 17-7/8"W x 7-1/8"H x 9-5/8"D
- weight: 15.9 lbs.
- MFR # Alpha C1 BLK
What's in the box:
- Center channel speaker
- Detachable grille (installed)
- 4 Self-adhesive rubber feet
- Owner's Manual (En/Fre/Sp/GE)
- Limited Warranty information
Features & specs
|Midrange size (inches)||N/A|
|Woofer size (inches)||5-1/4|
|Connector Type||5-way post|
|Frequency Response||62-21k Hz|
D'Appolito Speaker Array: The PSB Alpha Series C1 center channel's D'Appolito speaker array design employs a single .75" ferrofluid-cooled, aluminum dome tweeter flanked by a pair of 5.25" mid-woofers to create a wide soundstage with increased on and off axis performance. The C1 center channel easily handles complex on-screen action and dialogue.
Dual 5.25" Woofers: The PSB Alpha Series C1 speaker employs dual 5.25" injection molded metalized polypropylene woofers with rubber surrounds or accurate, detailed mibass response.
0.75" Tweeter: The Alpha Series C1 is equipped with a 0.75" aluminum dome, ferrofluid-cooled tweeter for crisp, clear high frequency reponse.
Waveguide: The C1 center channel's tweeter utilizes an acoustical waveguide to deliver, more even high frequency response, no matter what part of the room you're in.
Crossover Network: The tweeter and woofer are crossed over at 3,000 Hz.
Magnetically Shielded: The C1 is magnetically shielded for safe placement adjacent to your television.
Wood Grain Vinyl Cabinet: The PSB Alpha Series C1 features a black wood grain vinyl cabinet that matches almost any decor.
Bass Reflex Design: The PSB C1center channel speaker utilizes a bass reflex enclosure with a rear-firing port for greater efficiency and bigger bass response.
Aluminum Grille: The center channel speaker comes with a removable aluminum (metal-mesh) black grille.
5-Way Binding Posts: The 5-way binding posts will accept bare wire (up to 12-gauge), pin connectors, spade connectors, banana plugs, and dual banana plugs.
Color-Coded: The speaker's binding posts are color-coded (red/black) for easy identification between positive and negative.
Rubber Feet: The PSB C1 center channel includes four self-adhesive rubber feet to safely and securely place the speaker on a floor-stand or other AV furniture.
Wall Mounting: The PSB Alpha Series C1 center channel provides dual keyhole slots and four 1/4"-20 threaded inserts to wall-mount the speaker.
- Dual Keyhole Slots: The Alpha Series C1 loudspeaker has two keyhole slots on the back panel to easily wall-mount the speaker.
- 1/4"-20 Threaded Inserts: The C1 also features four rear-panel 1/4"-20 threaded insert to wall-mount the speaker using an optional articulating bracket (sold separately).
- On Axis @ 0°: 62-21,000 Hz (+/-3dB)
- Off Axis @ 30°: 62-10,000 Hz (+/-3dB)
- Low Frequency Cutoff -10 dB: 52 Hz
- Anechoic Chamber: 90 dB
- Typical Listening Room: 92 dB
Internal Volume: 0.46 cu ft
