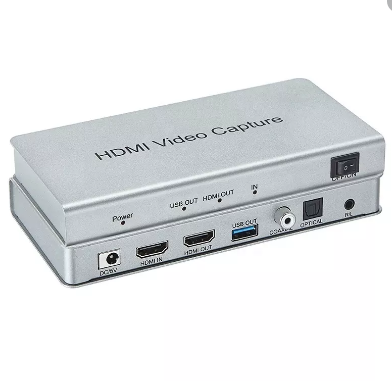

HDMI to usb 3.0 video capture

A.E Canada
Regular Price Rs.25,000.00 Sale Price Rs.30,000.00 Unit price: Rs.0.00
Overview

Brand Name:
A.E Canada
Product name:
HDMI Video Capture
HDMI:
HDMI 1.3
Product Type:
HDMI capture card
Resolution:
1080P/60Hz
Video Format:
8 bit Deep color
Max baud rate:
1.49Gbps
Max working curren:
1A
Power Supply:
5V/1.5A
Input:
1 HDMI
Output:
1 HDMI Output 1 USB Output

1080P HDMI to usb 3.0 video capture HDMI input+HDMI output+USB3.0 capture+audio extraction



Product Description

    The USB 3.0 HDMI video capture can capture the HD video and audio signal. It can display the HD signal to the displayer or projector.It can support USB storage by computer at the same time.

   The USB 3.0 HDMI video capture can also separate the HD video and audio signal. The stripped coaxial or optical fiber digital audio can connect with an amplifier. The stripped analog audio can connect to a headphone. The max resolution can be up to 1080P/60HZ.

1080P HDMI to usb 3.0 video capture HDMI input+HDMI output+USB3.0 capture+audio extraction

Features



  • Support HDMI1.3
  • Support max resolution 1080P/60Hz
  • Support the max baud rate of 1.49G and TMDS clock can be up to 148.5 MHz
  • Support 8 bit deep color
  • Support AWG26 HDMI standard cable: input up to 8 meters,output up to 8 meters. (1080P and below resolution)
  • Support USB 3.0 standard cable, output up to 1.5m
  • Support most capture software, such as VLC,OBS ,Amcap
  • Conform to USB video 1.5 and 1.0 standard
  • 5V/1.5A power adapter
Specifications


HDMI version

HDMI 1.3b

HDMI resolution

Max can be 1080P/60Hz

Support video format

8 bit Deep color

Support audio format

DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth

148.5MHz

Max baud rate

1.49Gbps

Input cable distance

(1080p resolution) ≤8m AWG26 HDMI standard cable

(1080p resolution) ≤8m AWG26 HDMI standard cable

(1080p resolution) ≤8m AWG26 HDMI standard cable1.5m USB 3.0 standard cable

Max working current

1A

Power adapter format

 input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1.5A

Operating Temperature range

 (-10 to +55℃)

Dimension (L x W x H)

162x80x23 (mm)

Weight

 420g





Operation steps for USB video capture

(To get the best result, we suggest the input audio sampling rate to be 48KHz)

Step 1: Choose the input audio sampling rate to be 48KHZ

Step 2: Set up a new source

Step 3:Set the image format

Step 4:Set the audio

Step 5:Set video and audio synchronization



Note:

 Computer hardware configuration requirements

CPUPC  i5-3400 or above ;NB  i7-3537U 2.0GHZ or above

Graphics cardPC NVIDIA GT630 or above;NC  NVIDIA  GT735M or above

Run memory4G RAM





Package include:

1.USB video capture

2. 5V/1.5A power adapter

3. 1.5m USB3.0 cable

4user manual
